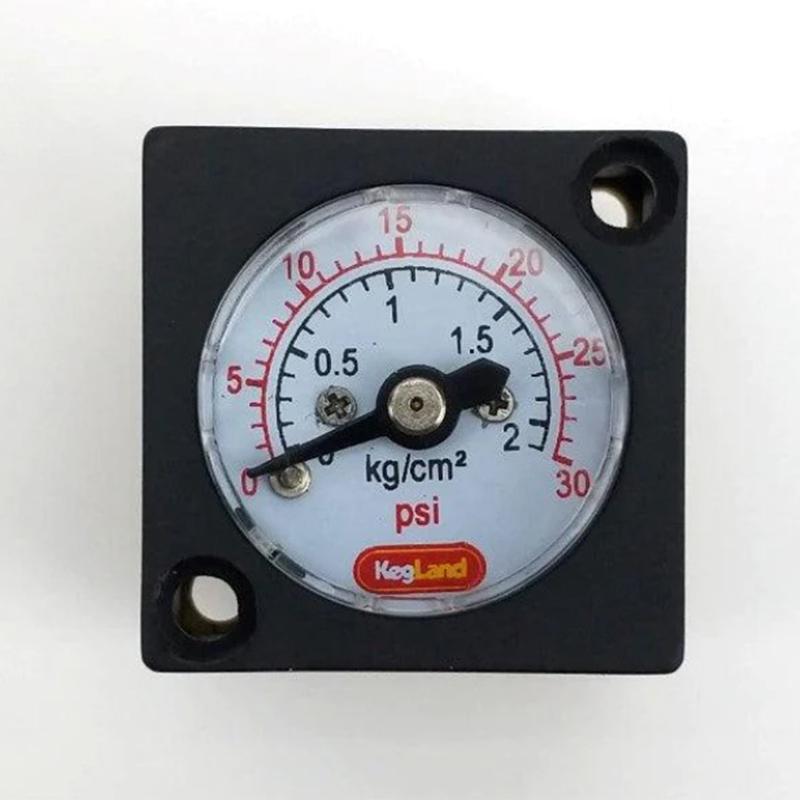

Mini Gauge 0-30psi

These can be used for water or gas.
These are quite easy to install into a tank and depending on the thickness of the tank wall all you need to do to fit a Gauge like this is drill a hole in the tank about 8mm in diameter then insert the gauge and secure with screws.

Specifications:

• Pressure: 0-30psi (0-2bar)
• Graduations: PSI + Bar
• Material: Brass/Plastic/Copper Capillary

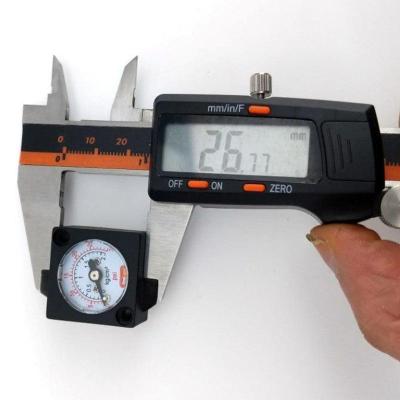

• Gauge Diameter: 20mm

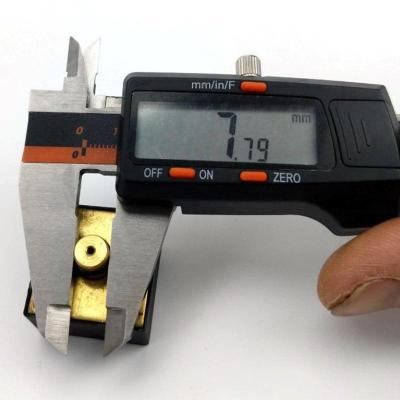

• Probe Diameter: 7.8mm (designed to fit 8mm hole)
• Accuracy: These gauges are accurate to 10% of the whole pressure range. (ie the 0-30psi Gauge is accurate to +/- 3psi).
