12 temperatures in 12 periods of time and the timers start when the setpoint temperature is reached
Can be set single or cycle control mode, wider time setting range: 1-999(min/hr), 1-90(days)
F/C degree display; Easy to set, PV and SV dual display windows
Maximum output load: 1200W(120V); Alarm when over-temperature and sensor error
Dual relay output, be able to connect with refrigeration and heating equipment at the same time. Dual display window, be able to display measured temperature and set temperature at the same time
Temperature Control Range : -50-120°C/-58-248°F
Temperature Resolution : 0.1°C / 0.1°F
Measuring Accuracy : ±1°C (-50-70°C) / ±1°F(-58-158°F)
Temperature Control Mode: On/Off Control, Heating and Cooling
Timing Accuracy: 24 hours±1.7s
Timing Range: 1-999 (min/hour/day)
Periods of Time Max: 12 periods
Cycle Setting: 1-999 times cycle, or 00 infinite cycle
Input Voltage: 100-240VAC, 50Hz/60Hz
Control Output Current: Max.10A
Voltage: 100-240V AC
Power: Max.1200W(120V)/2200W(220V)
Alarm: High and Low Temperature Alarm
Sensor Type: NTC Sensor(including)
Sensor Length: 2m / 6.56ft
Relay Output: Cooling(10A,100-240VAC)
Heating(10A,100-240VAC)
Input Power Cable Length: 1.5m (5ft)
Dimension: 140x68x33 mm (body)
Operating Ambient Temperature: -30-75°C / -22-167°F
Storage Condition Temperature: -20-60°C/ -4-140°F
Humidity: 20-85% (No freeze or moisture condensation)
Warranty: 1 Year
Package:

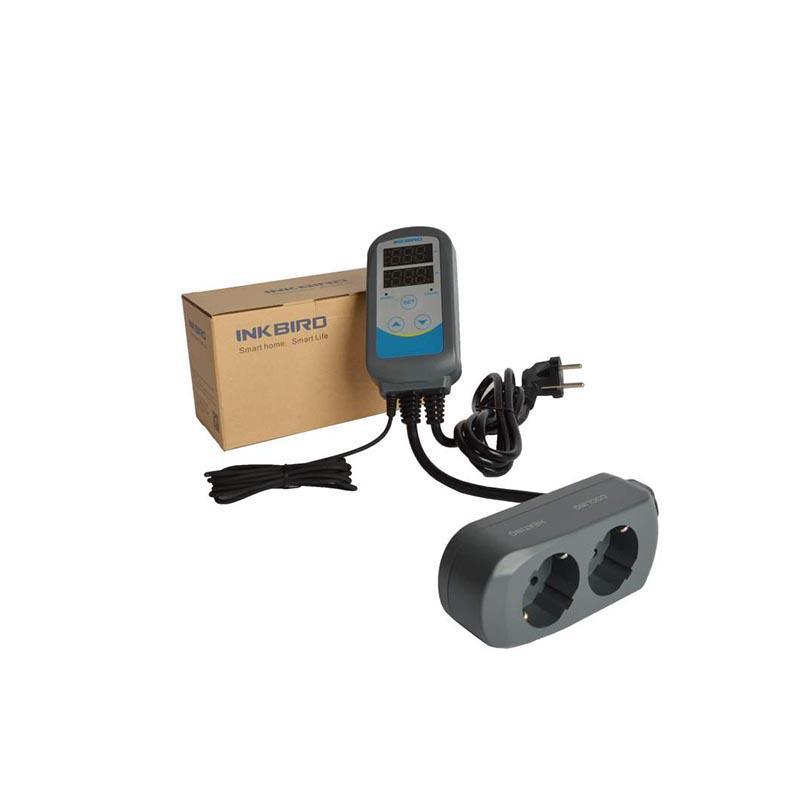

1 x ITC-310T Thermostat with Timer
1 x Manual
